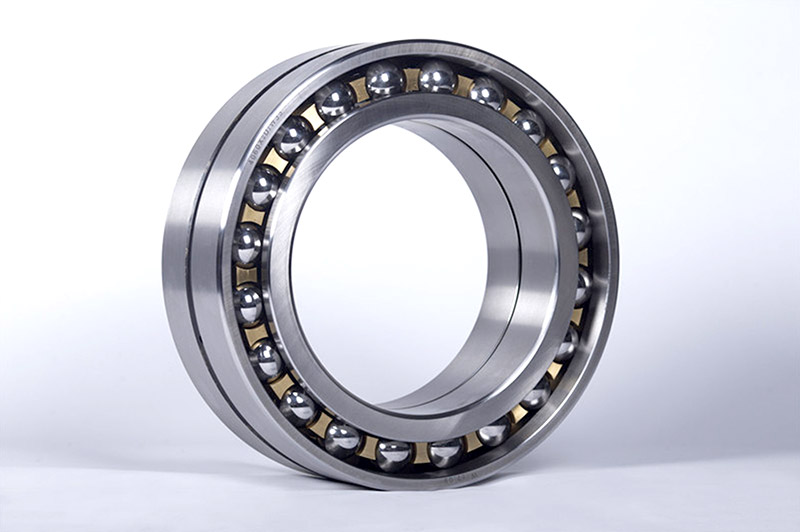

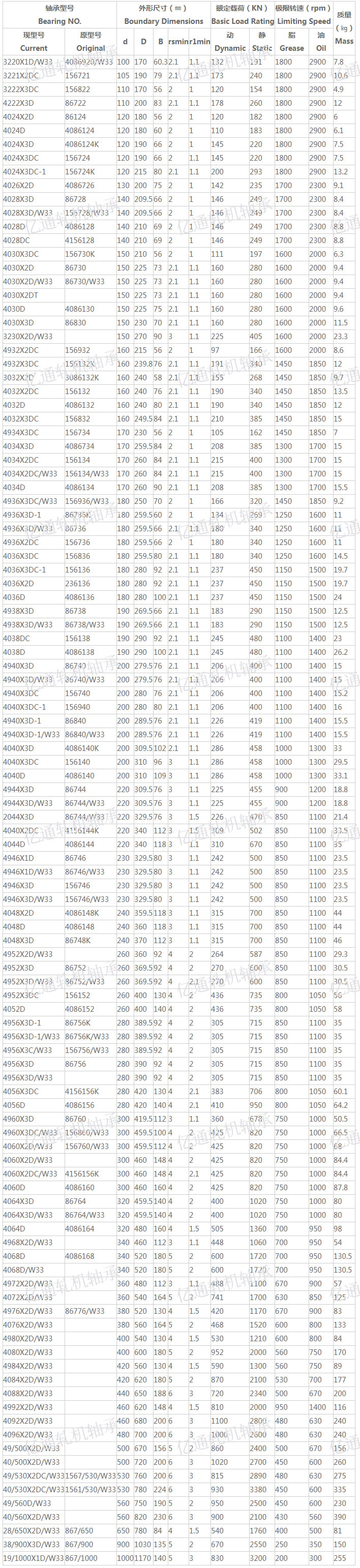

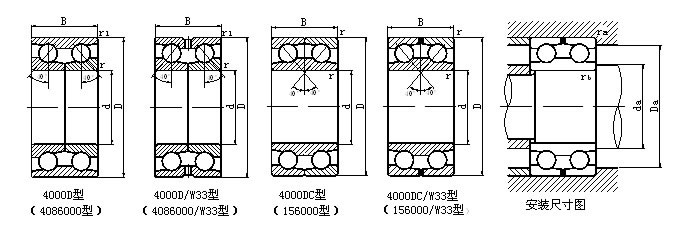

雙列角接觸球軸承

軸承型號
Bearing NO.

外形尺寸（㎜）
Boundary Dimensions

額定載荷（KN）
Basic Load Rating

極限轉速
Limiting Speed

質量
（㎏）
Mass

現型號
Current

原型號
Original

d

D

B

rsmin

r1min

動
Dynamic

靜
Static

脂
Grease

油
Oil

3220X1D/W33

4086920/W33

100

170

60.3

2.1

1.1

132

191

1800

2900

7.8

3221X2DC

156721

105

190

79

2.1

1.1

173

240

1800

2900

10.6

3222X3DC

156822

110

170

56

2

1

120

154

1800

2900

4.9

4222X3D

86722

110

200

83

2.1

1.1

178

260

1800

2900

12

4024X2D

86124

120

180

56

2

1

120

182

1800

2900

6

4024D

4086124

120

180

60

2

1

110

183

1800

2900

6.1

4024X3D

4086124K

120

190

66

2

1

145

220

1800

2900

7.5

4024X3DC

156724

120

190

66

2

1.1

145

220

1800

2900

7.5

4024X3DC-1

156724K

120

215

80

2.1

1.1

200

293

1800

2900

13.2

4026X2D

4086726

130

200

75

2

1

142

235

1700

2300

9.1

4028X3D

86728

140

209.5

66

2

1

146

249

1700

2300

8.4

4028X3D/W33

156728/W33

140

209.5

66

2

1

146

249

1700

2300

8.4

4028D

4086128

140

210

69

2

1

146

249

1700

2300

8.8

4028DC

4156128

140

210

69

2

1

146

249

1700

2300

8.8

4030X3DC

156730K

150

210

56

2

1

111

197

1600

2000

6.3

4030X2D

86730

150

225

73

2.1

1.1

160

280

1600

2000

9.4

4030X2D/W33

86730/W33

150

225

73

2.1

1.1

160

280

1600

2000

9.4

4030X2DT

150

225

73

2.1

1.1

160

280

1600

2000

9.4

4030D

4086130

150

225

75

2.1

1.1

160

280

1600

2000

9.6

4030X3D

86830

150

230

70

2.1

1.1

160

280

1600

2000

11.5

3230X2D/W33

150

270

90

3

1.1

225

405

1600

2000

23.3

4932X2DC

156932

160

215

56

2

1

97

166

1600

2000

8.6

4932X3DC

156132K

160

239.8

76

2.1

1.1

191

340

1450

1850

12

3032X2D

3086132K

160

240

58

2.1

1.1

155

268

1450

1850

9.7

4032X2DC

156132

160

240

76

2.1

1.1

190

340

1450

1850

13.5

4032D

4086132

160

240

80

2.1

1.1

190

340

1450

1850

12

4032X3DC

156832

160

249.5

84

2.1

1.1

210

385

1450

1850

15

4934X3DC

156734

170

230

56

2

1

105

162

1450

1850

7

4034X3D

4086734

170

259.5

84

2

1

208

385

1300

1700

15

4034X2DC

156134

170

260

84

2.1

1.1

215

400

1300

1700

15

4034X2DC/W33

156134/W33

170

260

84

2.1

1.1

215

400

1300

1700

15

4034D

4086134

170

260

90

2.1

1.1

208

385

1300

1700

15.5

4936X3DC/W33

156936/W33

180

250

70

2

1

166

320

1450

1850

9.2

4936X3D-1

86736K

180

259.5

60

2

1

134

269

1250

1600

11

4936X3D/W33

86736

180

259.5

66

2.1

1.1

180

340

1250

1600

11

4936X2DC

156736

180

259.5

66

2

1

180

340

1250

1600

11

4036X3DC

156836

180

259.5

80

2.1

1.1

180

340

1250

1600

14.5

4036X3DC-1

156136

180

280

92

2.1

1.1

237

450

1150

1500

19.7

4036X2D

236136

180

280

92

2.1

1.1

237

450

1150

1500

19.7

4036D

4086136

180

280

100

2.1

1.1

237

450

1150

1500

24

4938X3D

86738

190

269.5

66

2.1

1.1

183

290

1150

1500

12.5

4938X3D/W33

86738/W33

190

269.5

66

2.1

1.1

183

290

1150

1500

12.5

4038DC

156138

190

290

92

2.1

1.1

245

480

1100

1400

23

4038D

4086138

190

290

100

2.1

1.1

245

480

1100

1400

26.2

4940X3D

86740

200

279.5

76

2.1

1.1

206

400

1100

1400

15

4940X3D/W33

86740/W33

200

279.5

76

2.1

1.1

206

400

1100

1400

15

4940X3DC

156740

200

280

76

2.1

1.1

206

400

1100

1400

15.2

4040X3DC-1

156940

200

280

80

2.1

1.1

206

400

1100

1400

16

4940X3D-1

86840

200

289.5

76

2.1

1.1

226

419

1100

1400

15.5

4940X3D-1/W33

86840/W33

200

289.5

76

2.1

1.1

226

419

1100

1400

15.5

4040X3D

4086140K

200

309.5

102

2.1

1.1

286

458

1000

1300

33

4040X3DC

156140

200

310

96

3

1.1

286

458

1000

1300

29.5

4040D

4086140

200

310

109

3

1.1

286

458

1000

1300

33.1

4944X3D

86744

220

309.5

76

3

1.1

225

455

900

1200

18.8

4944X3D/W33

86744/W33

220

309.5

76

3

1.1

225

455

900

1200

18.8

2044X3D

86744/W33

220

329.5

76

3

1.5

226

470

850

1100

21.4

4040X2DC

4156144K

220

340

112

3

1.5

309

502

850

1100

33.5

4044D

4086144

220

340

118

3

1.1

310

670

850

1100

35

4946X1D

86746

230

329.5

80

3

1.1

242

500

850

1100

23.5

4946X1D/W33

86746/W33

230

329.5

80

3

1.1

242

500

850

1100

23.5

4946X3D

156746

230

329.5

80

3

1.1

242

500

850

1100

23.5

4946X3D/W33

156746/W33

230

329.5

80

3

1.1

242

500

850

1100

23.5

4048X2D

4086148K

240

359.5

118

3

1.1

315

700

850

1100

44

4048D

4086148

240

360

118

3

1.1

315

700

850

1100

44

4048X3D

86748K

240

370

112

3

1.1

315

700

850

1100

46

4952X2D/W33

260

360

92

4

2

264

587

850

1100

29.3

4952X3D

86752

260

369.5

92

4

2

270

600

850

1100

30.5

4952X3D/W33

86752/W33

260

369.5

92

4

2.1

270

600

850

1100

30.5

4952X3DC

156152

260

400

130

4

2

436

735

800

1050

56

4052D

4086152

260

400

140

4

2

436

735

800

1050

58

4956X3D-1

86756K

280

389.5

92

4

2

305

715

850

1100

35

4956X3D-1/W33

86756K/W33

280

389.5

92

4

2

305

715

850

1100

35

4956X3C/W33

156756/W33

280

389.5

92

4

2

305

715

850

1100

35

4956X3D

86756

280

390

92

4

2

305

715

850

1100

35

4956X3D/W33

280

390

92

4

2

305

715

850

1100

35

4056X3DC

4156156K

280

420

130

4

2.1

383

706

800

1050

60.1

4056D

4086156

280

420

140

4

2.1

410

950

800

1050

64.2

4960X3D

86760

300

419.5

112

3

1.1

360

678

750

1000

50.5

4960X3DC/W33

156860/W33

300

459.5

100

4

2

425

820

750

1000

66.5

4060X2D/W33

156760/W33

300

459.5

112

4

2

425

820

750

1000

68

4060X2D/W33

300

460

148

4

2

425

820

750

1000

84.4

4060X2DC/W33

4156156K

300

460

148

4

2.1

425

820

750

1000

84.4

4060D

4086160

300

460

160

4

2

425

820

750

1000

87.8

4064X3D

86764

320

459.5

140

4

2

400

1020

750

1000

80

4064X3D/W33

86764/W33

320

459.5

140

4

2

400

1020

750

1000

80

4064D

4086164

320

480

160

4

1.5

505

1360

700

950

98

4968X2D/W33

340

460

112

3

1.1

448

1060

700

950

54

4068D

4086168

340

520

180

5

2

600

1720

700

950

130.5

4068D/W33

340

520

180

5

2

600

1720

700

950

130.5

4972X2D/W33

360

480

112

3

1.1

488

1100

670

900

57

4072X2D/W33

360

540

164

5

2

741

1700

630

850

125

4976X2D/W33

86776/W33

380

520

130

4

1.5

420

1170

670

900

83

4076X2D/W33

380

560

164

5

2

468

1520

600

800

133

4980X2D/W33

400

540

130

4

1.5

530

1210

600

800

84

4080X2D/W33

400

600

180

5

2

952

2000

560

750

170

4984X2D/W33

420

560

130

4

1.5

590

1300

560

750

89

4084X2D/W33

420

620

180

5

2

870

2100

530

700

177

4088X2D/W33

440

650

188

6

3

720

2340

500

670

200

4992X2D/W33

460

620

148

4

1.5

810

2000

950

1400

116

4092X2D/W33

460

680

200

6

3

1100

2800

480

630

240

4096X2D/W33

480

700

200

6

3

1000

2600

480

630

240

49/500X2D/W33

500

670

156

5

2

860

2400

500

670

156

40/500X2D/W33

500

720

200

6

3

1020

2700

450

600

260

49/530X2DC/W33

1567/530/W33

530

760

200

6

3

815

2890

480

630

275

40/530X2DC/W33

1561/530/W33

530

780

224

6

3

930

3380

450

600

335

49/560D/W33

560

750

190

5

2

950

2500

450

600

230

40/560X2D/W33

560

820

230

6

3

900

2100

430

560

390

28/650X2D/W33

867/650

650

780

84

4

1.5

540

1760

400

500

81

38/900X3D/W33

867/900

900

1030

135

5

2

670

2550

250

350

150

19/1000X1D/W33

867/1000

1000

1170

140

5

3

830

3200

200

300

255
